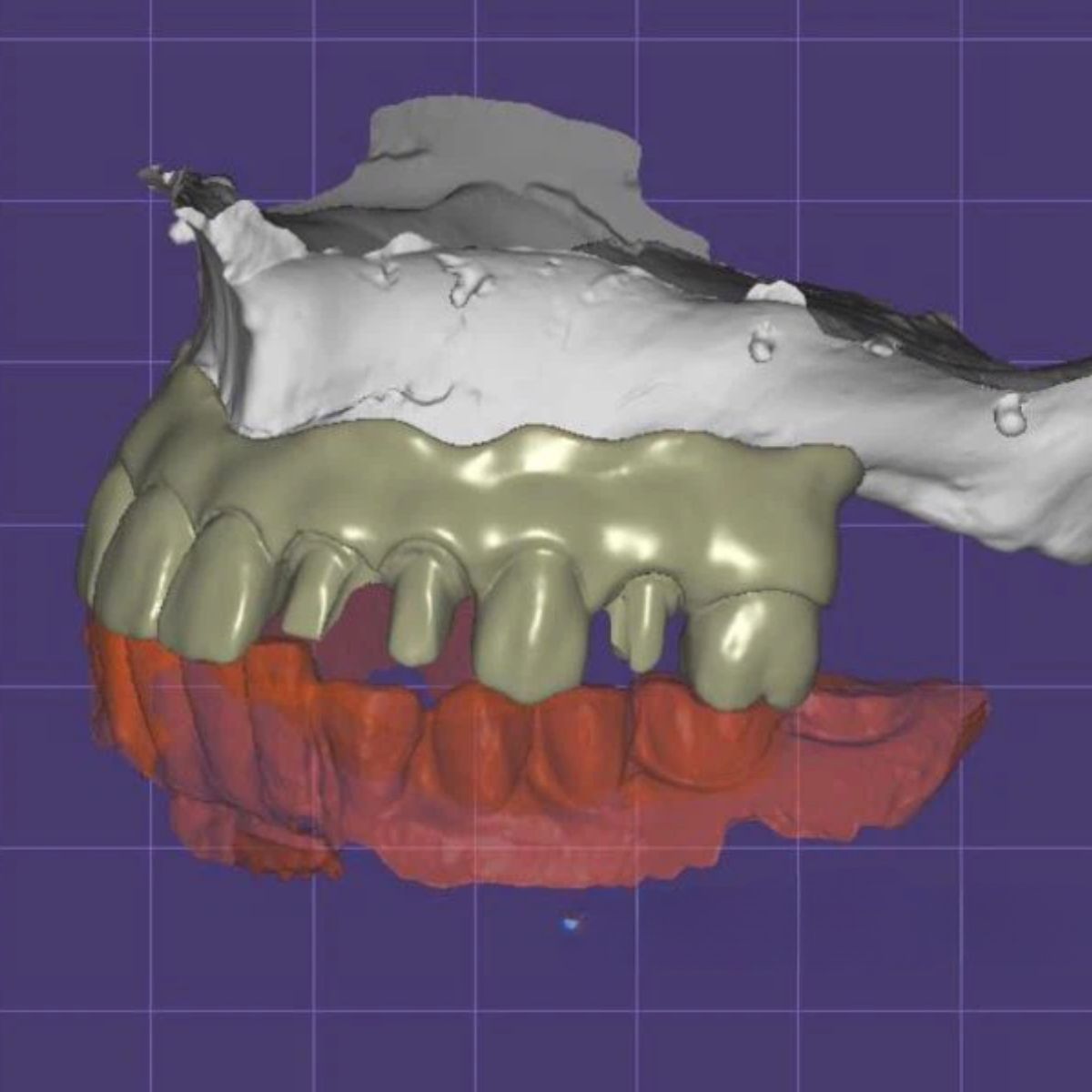

All-on-4® & All-on-X Full Arch Hybrid Design Service
The ultimate engineering for Edentulous Rehabilitation.
- Structures: Thimble Bars, Montreal Bars, Toronto Bridges, Hybrids.
- Materials: Zirconia, PMMA, Titanium, Pekkton.
- Engineering: Optimized AP Spread & Cantilever safety.
- Turnaround: 24 Hours (Overnight).
From prototype to final delivery, we engineer for strength and hygiene.
- Expertly crafted digital dental designs tailored to your clinic’s needs
- Fast turnaround times – on-time delivery, every time
- Competitive pricing with global quality standards
- Dedicated support from experienced dental designers
- 100% satisfaction guarantee – or your money back
Complex Engineering. Simplified Workflow.
Full arch restorations (All-on-4 Implant Design / All-on-X) are the most technically demanding cases in a dental lab. They require a perfect balance of biology (hygiene), physics (load distribution), and art (esthetics).
At China Dental Designer, we act as your specialized engineering department. Whether you need a PMMA Prototype for try-in or a final Zirconia Hybrid, your dedicated technician ensures the design is mechanically sound and esthetically pleasing.
Technical Engineering Specifications
We do not just “connect the implants.” We apply strict biomechanical principles to prevent catastrophic failures:
Bar Design Types
- Thimble Bar: A substructure (Titanium/Zirconia) with individual preparations for cementing single crowns. This offers the highest esthetics (“Rose Aesthetics”).
- Montreal / Hader Bar: Designs for clip-on overdentures or wrap-around acrylic hybrids.
- Monolithic Zirconia: Full contour designs with facial cut-back for pink porcelain layering.
Safety Parameters
- Cantilevers: Strictly calculated based on the A-P Spread (Anterior-Posterior) to prevent distal fracture.
- Intaglio Surface: Convex (ovoid) hygienic design to allow easy cleaning with Superfloss or Waterpik.
- Passive Fit: Cement gaps optimized for Multi-Unit Abutments (MUA) or direct-to-fixture interfaces.
Why Assign All-on-X Cases to a Remote Team?
A single All-on-4 Implant Design can consume 2-4 hours of intense CAD work. By assigning this task to your remote team at China Dental Designer, you free up your local workstations. We handle the heavy lifting: library matching, bar nesting preparation, and gingival sculpting overnight.
Seamless Overnight Workflow
- Scan: Upload MUA level scans (or fixture level), Soft Tissue scan, and Opposing dentition.
- Records: Include Bite Registration and Vertical Dimension (VDO) specific instructions.
- Receive: Download the production-ready STL file by 8:00 AM EST.
Complex Case? Let’s Plan It.
Do you have a Thimble Bar case? Send us the files, and we will design the substructure and superstructure perfectly.
Email your STL files to: chinadentaldesigner@outlook.com
